Selmech Ultra Low volume (ULV+) Applicator

Selmech’s ULV+ applicator can apply additive at rates from 20ml to 250ml per minute using our own innovative flow measurement system. The applicator uses a peristaltic ‘squeeze’ pump, which has open flow pipe work with no in line flow sensor or filters which could get blocked. When full, the 55 litre translucent tank will treat over 1000 tonnes of forage before needing to be refilled, assuming an application rate of 50 ml per tonne. The Dflow control box automatically monitors and adjusts the flow from the pump to deliver additive precisely. The ULV+ can also be offered as a pump module without a tank, which would allow the user to source their own tank, use an inbuilt tank or even an insulated tank for use in very warm conditions. An optional low-level sensor can be fitted to alert the operator when the tank is nearly empty.

Features

  • Translucent tank with a capacity 55 litres
  • Treat over 1000 tonnes of forage with one fill
  • Mounting brackets with multiple options
  • 3 way valve with drain tube
  • Open flow pipe work with no in line filters

Dflow+ controller

The digital control box automatically monitors and adjusts the pump to keep it’s output constant, this enables the pump to deliver silage inoculant additive precisely. It has a back-lit display for harvesting at night and has on board memory to record the total litres of silage additive dispensed.

An applicator stop start signal from your harvesting machine, if available, can be used by the control box to pause and resume the pump automatically. The hold button will also do this manually.

Features

  • Digital display
  • Easy set-up function
  • Records the total litres applied
  • Digital speed sensor flow comtrol
  • Automatic applicator stop start

Some examples of the ULV Applicator.

...
ULV applicator

ULV applicator with 55 litre tank and mounting brackets.

...

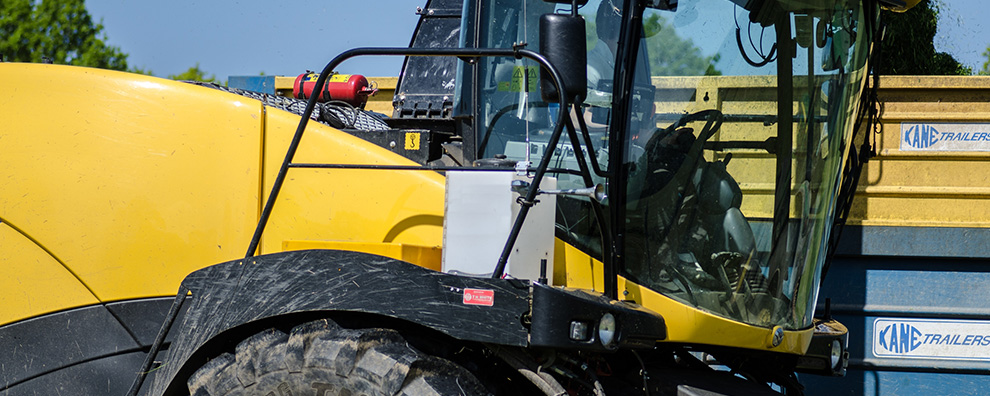

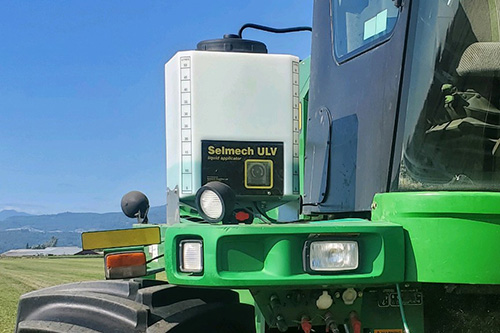

Self propelled harvester

Mounted on self propelled forage harvester in view of the cab.

...

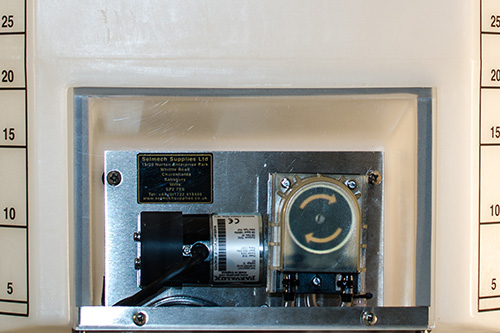

Covered pump chamber

Peristaltic pump with motor sensor to control output acurately.

...
Use on a trailed harvesters

ULV application rates can be used on trailed harvesters.

...

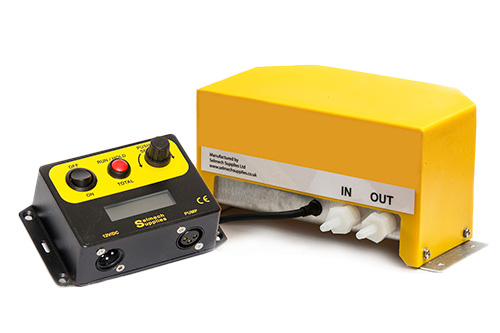

ULV Pump module

The ULV pump ban be supplied in a module without a tank.

More information

ULV leaflet with description and features including overall dimensions

The user manual is in two parts. The control box and the ULV applicator. Use the links below to down load the ones you want.

The Dflow control box.

The ULV appliator with 55 litre tank

Always refer to the user manual to make sure you have the applicator set up correctly. There is a fault finding table in the manual which may help you solve the problem. There are also some links below to further help you.

Parts List
