Some things to consider
The function of a forage wagon is - the grass gets picked up and chopped and then transferred into the wagon in a linear fashion. So there is no mixing action as with a forage harvester.
With that in mind we always recommend a minimum application rate of 2 litre per tonne be applied with at least two jets. This is just our opinion so please always seek advise from your additive supplier
Liquid applicators
Digital Control
The Dflow digital control box makes setting up and using the applicator a lot easier than with a conventional non servoing control box. There is no need to do jug test or use float type flow meters
The control box automatically monitors and adjusts the pump to keep it’s output constant, this enables the pump to deliver additive precisely.
There is an optional crop detector available to automatically turn the pump on and off.

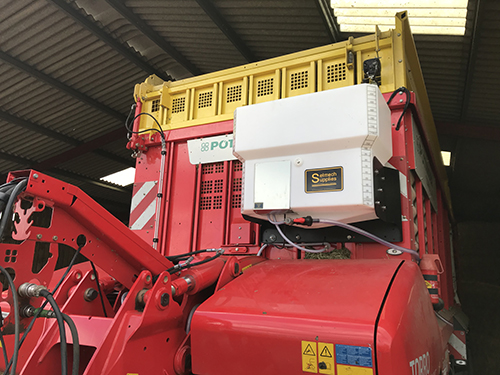

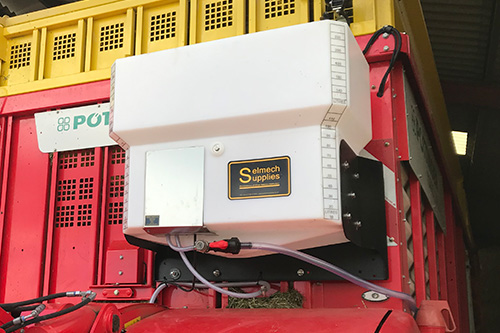

Front mounted tank kit
A complete tank kit for forage wagons with a tank mounted on its own multi position bracket with digital control box.
These can be supplied with output options (open flow) of 0.5 - 5 litres or 1 - 10 litres per minute. Tank available with a capacity of 250 , 175 or 125, litre.
Kits are supplied with two jets with anti siphon check valves, more can be added if required.
Download a product leaflet
Tank kit

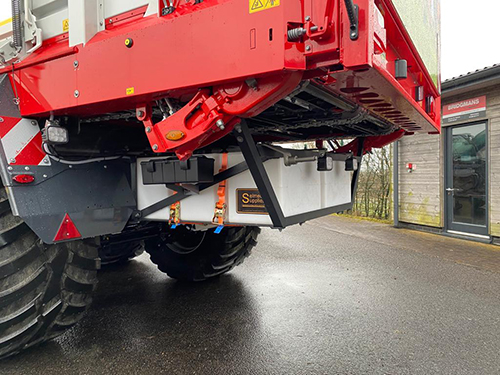

kit with underslung tank
Designed for loader wagons where it is not possible to mount a tank in a safe accessible place. The underslung tank has a sump and a filler port that can be used to fill it more safely from ground level. There is also a low level switch that will alert the operator, via the control box, when the tank is nearly empty and needs to be re filled.
The high volume Dflow module can accurately deliver up to 10 litres per minute. With our servoing digitally controller this can be used with your own tank or we can supply it with a 400 liter slim front mounted tank or underslung tank. Kits are supplied with two jets with anti siphon check valves, more can be added if required.
Download a product leaflet
Underslung tank kit
Dflow module
Basic kits
Our SDP kit comes with a non servoing in cab speed controller and can delivers up to 14 litres per minute open flow. These kits are suitable for use with your own tank or our 400 litre tank. Also because the SDP kit has a high pressure diaphragm pump it can be used with anti siphon check valves in the jet bodies. Kits are supplied with two jets with anti siphon check valves, more can be added if required.
The Flowmaster stem pump is a very popular choice to be used with a 200 litre upright tank. It is robustly made easy to set up and use. Supplied with a non servoing in cab speed controller delivering up to 10 litres per minute.
With the tanks typically mounted high up on the front of the wagon you will need an anti-siphoning solenoid check valve with the Flowmaster.
Powder/granular applicator
With our new Dflow Powder Master powder/granular additive can be dispensed more precisely than ever before. supplied with our servoing digital control box that can be easily be set up to use with all brands of silage or forage additive.
Our non servoing Powder Master with in cab speed controller.
